FP-Products


FP-1

  • 1 output 230V, either as 0-10V signal
  • 4 sensor inputs
  • 1 digital input
  • Clock, data logger and interface optional

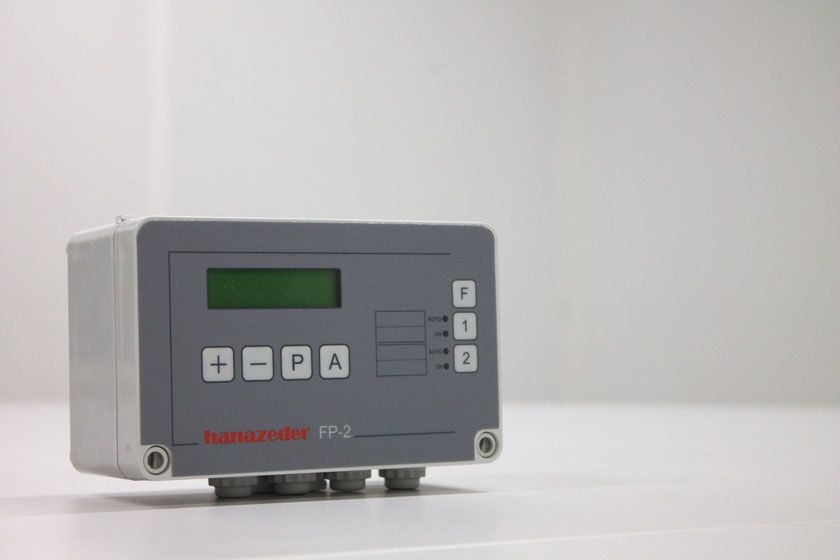

FP-2

  • 2 outputs 230V, either as 0-10V signal
  • 6 sensor inputs
  • 1 digital input
  • Clock, data logger and interface optional

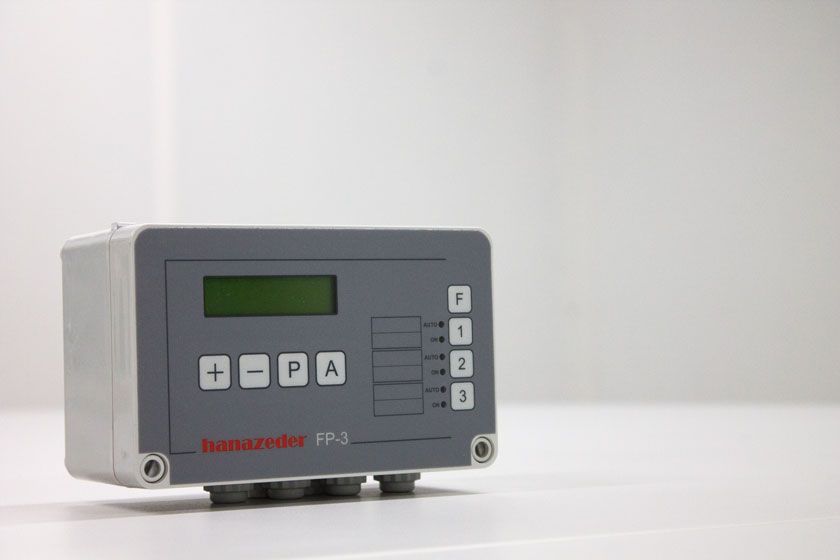

FP-3

  • 3 outputs 230V, 2 of them either as 0-10V signal
  • 8 sensor inputs
  • 1 digital input
  • Clock, data logger and interface optional
  • Outside temperature-dependent heating circuit with mixer

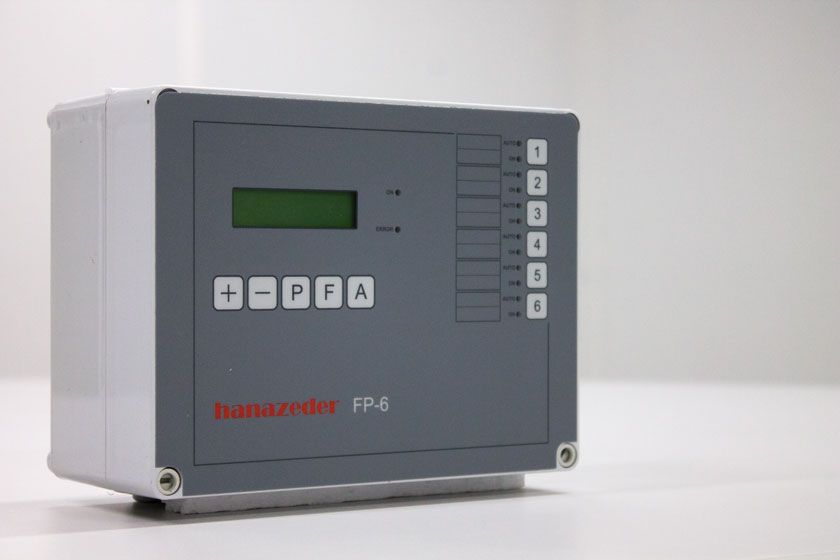

FP-6

  • 5 outputs 230V, 3 of them either as 0-10V signal
  • 10 sensor inputs
  • 2 digital inputs
  • Clock, data logger and interface standard
  • Outside temperature-dependent heating circuit with mixer

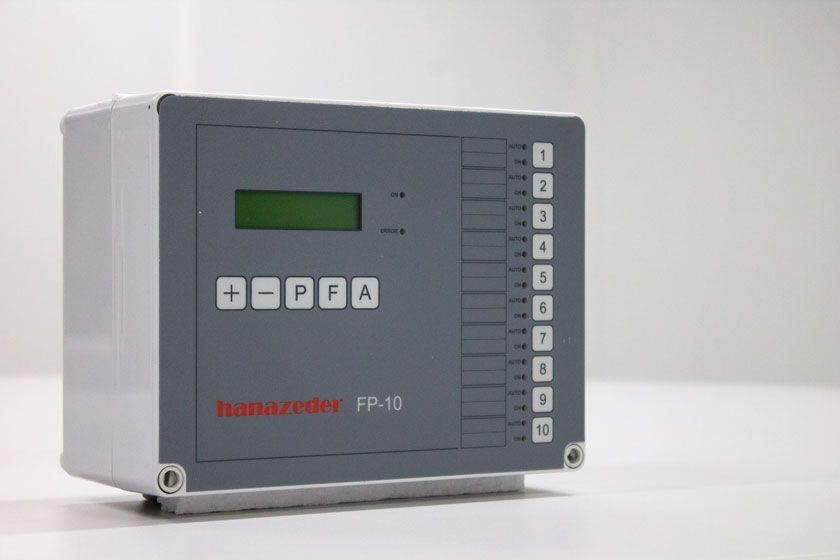

FP-10

  • 8 outputs 230V, 3 of them either as a 0-10V signal
  • 15 sensor inputs
  • 2 digital inputs
  • Clock, data logger and interface standard
  • 2 Outside temperature-dependent heating circuits with mixer

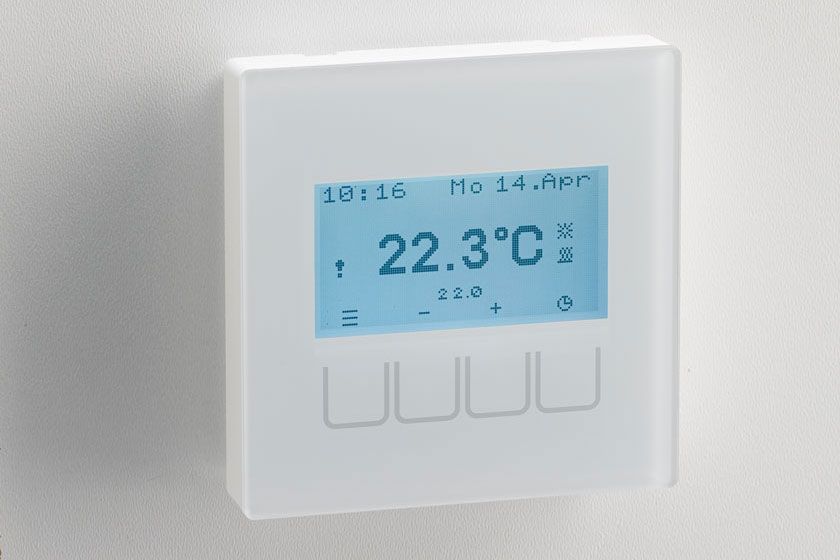

Control panel

The control panel with integrated room temperature sensor allows control of the heater and also displays the current operating status. In addition, all measured values ​​of the controller can be displayed.The control panel has a graphic display and capacitive buttons behind a plexiglass front.It is connected via a 4-pin bus cable to the controller and supplied by this power.

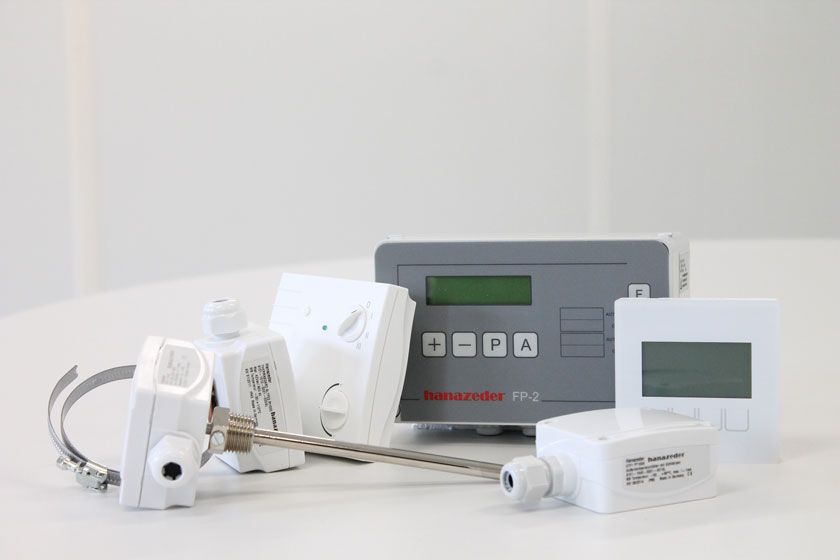

Accessories

We offer miscellaneous accessories to go with the controllers.

  • Room control units
  • Outdoor sensors
  • Cable Sensors
  • Immersion sensors
  • Contact sensors
  • Flow meter
